Jet nozzel diffuser CM007
Jet nozzel diffuser » CM007

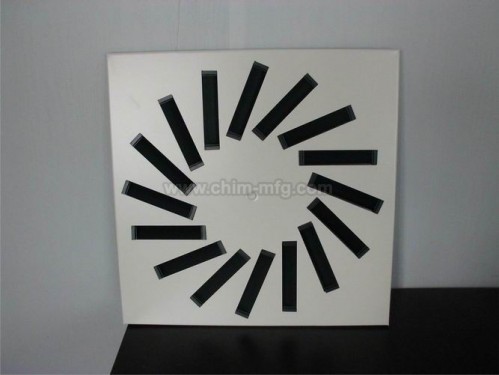

Pictures available of Jet nozzel diffuser:

CM007

Jet nozzel diffuser

Swirl Diffuser
The CM series swirl diffusers are designed to be applied in air condition¬ing, ventilation and heating systems. They can either be cut into a lay-in grid tile or used to completely replace a 595mm or 598mm square tile.
The design of this grille and its flat plate mounting generates a swirl effect on the air giving a high Coadhesive to the ceil-ing. This obtains a high induction index and reduces stratification.

Enquiry Now

Jet nozzel diffuser Details

The CM series swirl diffusers are designed to be applied in air condition¬ing, ventilation and heating systems. They can either be cut into a lay-in grid tile or used to completely replace a 595mm or 598mm square tile.
The design of this grille and its flat plate mounting generates a swirl effect on the air giving a high Coadhesive to the ceil-ing.  This obtains a high induction index and reduces stratification.

The individual turning vanes allow you to change the direction of importation angle and adjust the diffuser to suit varying throw re¬quirements. These are 360°/180° opposite, or all the air going in one direction.

The Unique click and clean hinged remova¬ble core system enables easy access through the core, without the use of tools. By pressing the spring release catches the core hinges down for easy cleaning.

Specification and Construction:
These units can be manufactured from ei¬ther steel or aluminum and are fabricated by punching out individual slots and mount¬ing the adjustable pattern control blade.  The plenum boxes are held to the grilles by a cen¬trally located screw and bar.
z
Sizes:
Circular units start at 150mm dia. and square panels go up to 1200mm x 600mm.

Finish:
Standard finish is white matt with black pattern control blades.  Alternative standard RAL colors are available at extra charge,

Alternative Designs:
We are now able to offer a high capacity vari¬ation of this diffuser, which can take volumes of up to 280ltrs with 3 ½ meter throws.

Fixing:
All units are suitable for hidden fixing via a screw into a hidden bar mounted inside the plenum box.
